PE Squeeze-Off Tools - CTS & IPS Stops

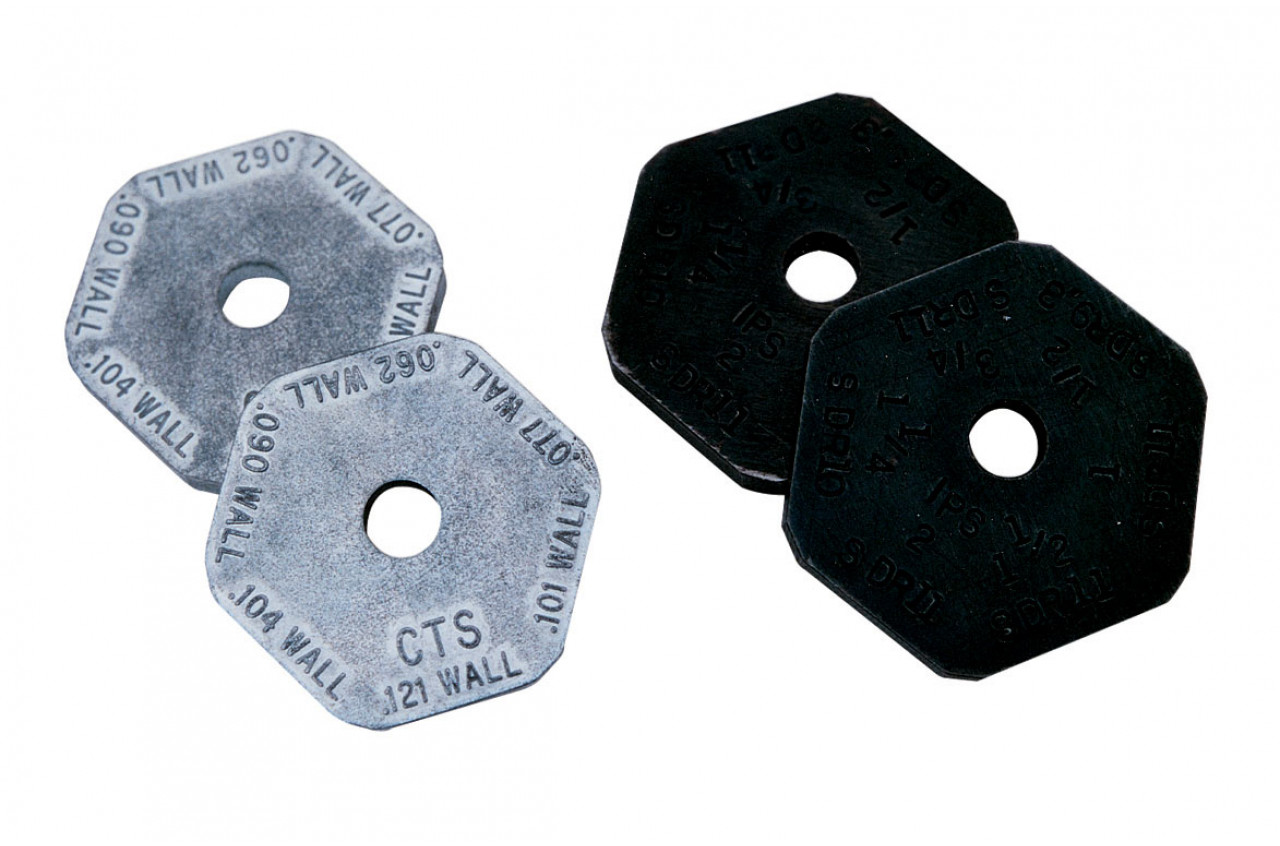

CTS STOP (left), IPS STOP (right)
PE Squeeze-Off Tools - CTS & IPS Stops

Features

  • Positive stops are key to proper user of squeeze-off tools as they provide over-squeeze protection.
  • When the job specifications are known, turn the dial to set and match the stop size on both stops.
  • Be sure to verify tool models that the stops fit, in addition to checking for pipe diameter and wall thickness.

Specifications

Catalog No.Item CodeFitsPipe/SDR (IPS)
Wall Thickness (CTS)
Pipe Diameter
PES1CS94279PES1 ModelsSDR7 .090” Wall
SDR 9.3 .090” Wall
SDR 10 .062” Wall
SDR 11 .095” Wall
SDR 9.3 .121” Wall
SDR 11 .119” Wall
1/2” CTS
1/2” IPS
1/2” CTS
3/4” IPS
1” CTS
1” IPS
CTS98078PES2 Models.121"
.104"
.101"
.090"
.077"
.062"
CTS
IPS98079PES2 ModelsSDR 9.3
SDR 11
SDR 11
SDR 10
SDR 11
SDR 11
1/2"
3/4"
1"
1-1/4"
1-1/2"
2"
PES4CCST[1]98381PES4DBSDR 9
SDR 9.3
SDR 11
SDR11/11.5
SDR13.5
4"
2”, 3”
2”
3”, 4”
3”, 4”
PES4STOP98094PES4, PES4DBSDR 9.3
SDR 11
SDR11/11.5
SDR13.5
2”, 3”
2”
3”, 4”
3”, 4”
98319 Stops98319PES8M, PES8HSDR 11
SDR 13.5
SDR 11.5
SDR 15.5
SDR 11
SDR 11.5
SDR 13.5
SDR 15.5
8"
8"
8"
8"
6"
6"
6"
6"
98320 Stops98320PES6H, PES6M
PES8H, PES8M
SDR 11
SDR 11.5
SDR 13.5
SDR 11
SDR 11.5
SDR 13.5
3"
3"
3"
4"
4"
4"
98356 Stops98356PES6H, PES6MSDR 11
SDR 11.5
SDR 11
SDR 11.5
SDR 13.5
SDR 15.5
4"
4"
6"
6"
6"
6"
98358 Stops98358PES6H, PES6M
PES8H, PES8M
SDR 7
SDR 9
SDR 9.3
2", 3", 4"
2", 3", 4"
2", 3", 4"
98359 Stops98359PES6H, PES6M
PES8H, PES8M
SDR 15.5
SDR 17 (for 5 sizes)
4"
2", 3", 4", 6", 8"
[1]

Coming Soon

More Information

Use easy-to-adjust stops to convert PE Squeeze-Off Tools from one type of stops to another.
