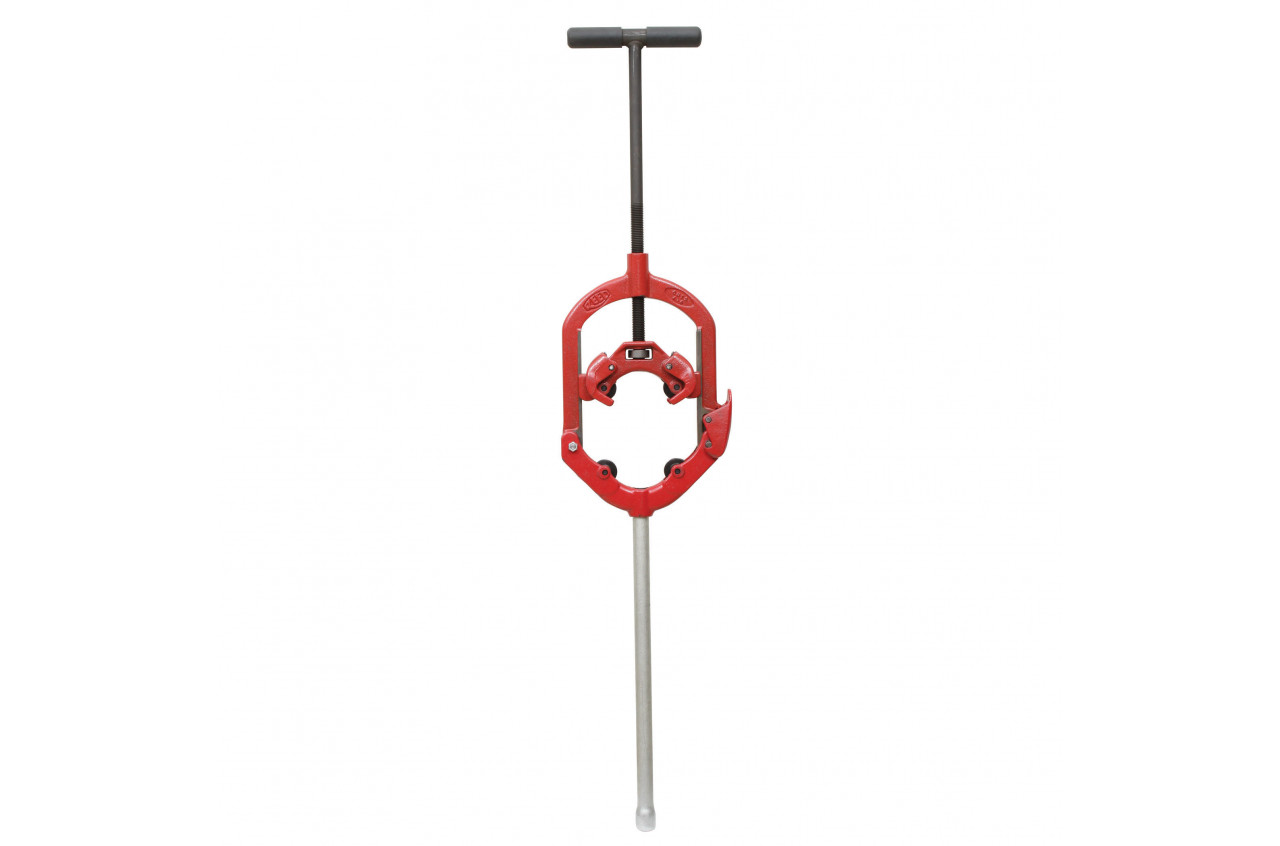

Hinged Pipe Cutters with Helper Handles
Features
- “Helper handle” allows two people to make a team effort for bigger, tougher cuts.
- Great choice for cutting well casing.
- Efficient handle swing of only 90° to 110°.
Specifications
| Catalog No. | Item Code | Pipe Capacity | Cutter Wheel | Application[1] | Shipping Length | Assembled Length | Weight | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| in-nom. | actual O.D. mm | in | mm | in | mm | lbs | kg | ||||
| H6SHH | 03138 | 4 - 6 | 114 - 182 | HS6 | Copper Sch. 80 Stainless/Sch. 80 Steel 4" Sch. 80 Stainless/Extra Heavy Steel 4 1/2" Sch. 80 Stainless/Sch. 80 Steel 5" Sch. 40 Stainless/Sch. 40 Steel 6" | 28 | 711 | 51 | 1295 | 21.8 | 9.9 |
| H8SHH | 03148 | 6 - 8 | 168 - 240 | HS8-12 | Copper Sch. 80 Stainless/Sch. 80 Steel 6" Sch. 40 Stainless/Std. Steel 7" Sch. 40 Stainless/Sch. 60 Steel 8" | 32 | 813 | 58 | 1473 | 23.6 | 10.7 |
| H12SHH | 03158 | 8 - 12 | 219 - 356 | HS8-12 | Sch. 40 Stainless/Sch. 60 Steel 8" Sch. 40 Stainless/Std. Steel 9" Sch. 40 Stainless/Sch. 40 Steel 10" Sch. 40 Stainless/Std. Steel 11" Sch. 40 Stainless/Sch. 40 Steel 12" | 34 | 864 | 63 | 1600 | 36.5 | 16.6 |
| H6XHH | 03139 | 4 - 6 | 114 - 182 | HX6 | Sch. 80 Stainless/Sch.120 Steel 4" Sch. 80 Stainless/Extra Heavy Steel 4 1/2" Sch. 80 Stainless/Sch. 80 Steel 5" Sch. 80 Stainless/Sch. 80 Steel 6" | 28 | 711 | 51 | 1295 | 21.8 | 9.9 |
| H8XHH | 03147 | 6 - 8 | 168 - 240 | HX8 | Sch. 80 Stainless/Sch.120 Steel 6" Sch. 80 Stainless/Extra Heavy Steel 7" Sch. 80 Stainless/Sch. 80 Steel 8" | 32 | 813 | 58 | 1473 | 23.6 | 10.7 |
| H12XHH | 03157 | 8 - 12 | 219 - 356 | HX8 | Sch. 80 Stainless/Sch. 80 Steel 8" Sch. 80 Stainless/Extra Heavy Steel 9" Sch. 80 Stainless/Extra Heavy Steel 10" Sch. 80 Stainless/Extra Heavy Steel 11" Sch. 80 Stainless/Extra Heavy Steel 12" | 34 | 864 | 63 | 1600 | 36.5 | 16.6 |
| H8XXHH | 03149 | 6 - 8 | 168 - 240 | HXX8 | Sch. 80 Stainless/Sch. 120 Steel 6" Sch. 80 Stainless/Extra Heavy Steel 7" Sch. 80 Stainless/Sch. 100 Steel 8" | 32 | 813 | 58 | 1473 | 23.6 | 10.7 |
| H12XXHH | 03159 | 8 - 12 | 219 - 356 | HXX8 | Sch. 80 Stainless/Sch. 100 Steel 8" Sch. 80 Stainless/Extra Heavy Steel 9" Sch. 80 Stainless/Sch. 80 Steel 10" Sch. 80 Stainless/Extra Heavy Steel 11" Sch. 80 Stainless/Extra Heavy Steel 12" | 34 | 864 | 63 | 1600 | 36.5 | 16.6 |
Includes pipe schedule listed plus all lower schedules of same pipe type.
More Information
Special Hinged Pipe Cutters with an extra “helper handle” allow two people to make a team effort for bigger, tougher cuts. Hinged Pipe Cutters feature four wheels to cut steel, stainless steel, cast and ductile iron with only 90° to 110° handle swing. These models are ideal for cuts on well casing. Strong guide fingers ensure perfect wheel alignment for square cuts. A closed 360° frame on the hinged cutter forces all energy into cutting the pipe for maximum efficiency. There is no shower of sparks in this cold cut. REED has the only hinged cutter that tracks every time and the only one recommended for ductile iron, steel, and stainless steel to Schedule 100. The Hinged Pipe Cutters is a REED invention.
