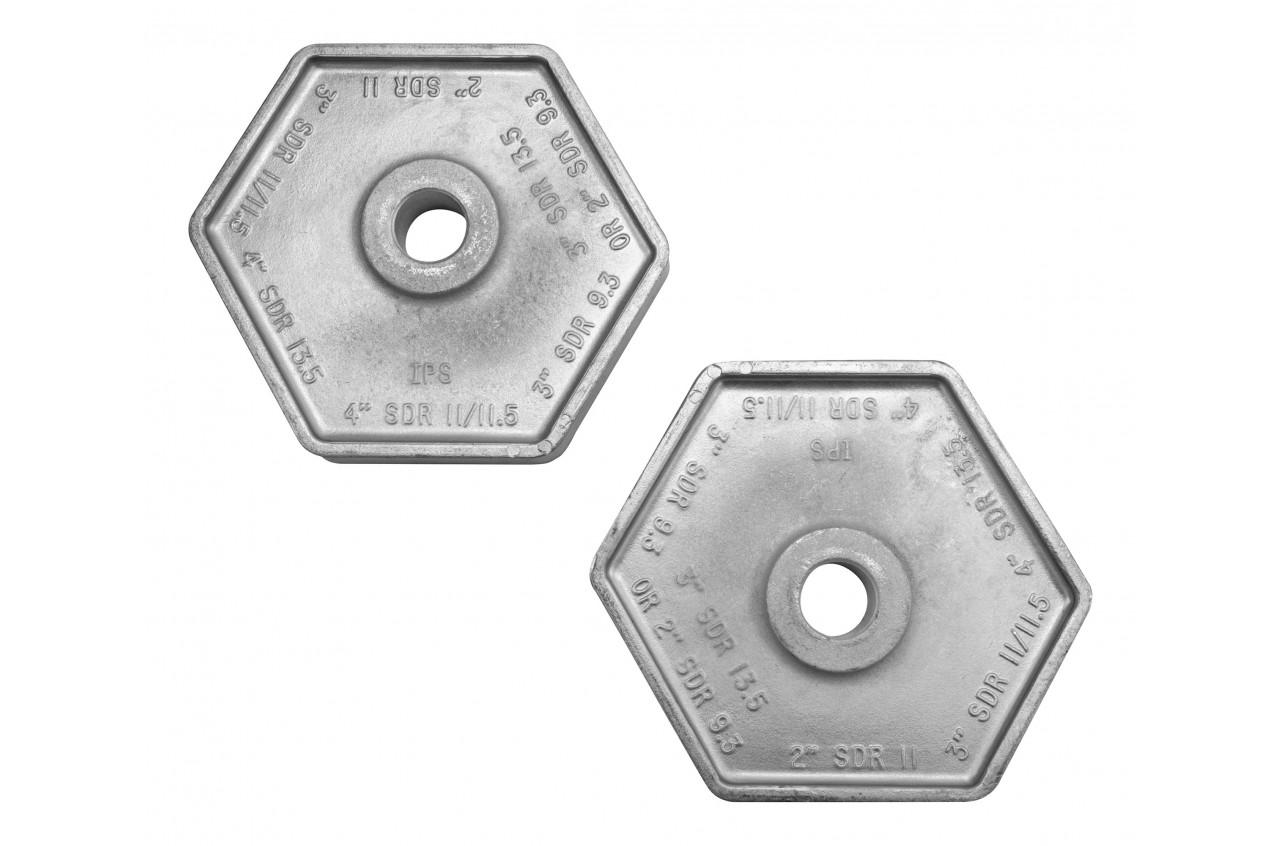

Outil à compression PE - Butées CTS et IPS
Caractéristiques
Spécifications
| Nº Catalogue | Code Item | Convient à | Tuyau/rapport normal de dimension (calibre interne du tuyau) Épaisseur du mur (taille du tube en cuivre) | Diamètre du tuyau |
|---|---|---|---|---|
| PES1CS | 94279 | PES1 Models | SDR7 .090” Wall SDR 9.3 .090” Wall SDR 10 .062” Wall SDR 11 .095” Wall SDR 9.3 .121” Wall SDR 11 .119” Wall | 1/2” CTS 1/2” IPS 1/2” CTS 3/4” IPS 1” CTS 1” IPS |
| CTS | 98078 | PES2 Models | .121" .104" .101" .090" .077" .062" | CTS |
| IPS | 98079 | PES2 Models | SDR 9.3 SDR 11 SDR 11 SDR 10 SDR 11 SDR 11 | 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" |
| PES4CCST[1] | 98381 | PES4DB | SDR 9 SDR 9.3 SDR 11 SDR11/11.5 SDR13.5 | 4" 2”, 3” 2” 3”, 4” 3”, 4” |
| PES4STOP | 98094 | PES4, PES4DB | SDR 9.3 SDR 11 SDR11/11.5 SDR13.5 | 2”, 3” 2” 3”, 4” 3”, 4” |
| 98319 Stops | 98319 | PES8M, PES8H | SDR 11 SDR 13.5 SDR 11.5 SDR 15.5 SDR 11 SDR 11.5 SDR 13.5 SDR 15.5 | 8" 8" 8" 8" 6" 6" 6" 6" |
| 98320 Stops | 98320 | PES6H, PES6M PES8H, PES8M | SDR 11 SDR 11.5 SDR 13.5 SDR 11 SDR 11.5 SDR 13.5 | 3" 3" 3" 4" 4" 4" |
| 98356 Stops | 98356 | PES6H, PES6M | SDR 11 SDR 11.5 SDR 11 SDR 11.5 SDR 13.5 SDR 15.5 | 4" 4" 6" 6" 6" 6" |
| 98358 Stops | 98358 | PES6H, PES6M PES8H, PES8M | SDR 7 SDR 9 SDR 9.3 | 2", 3", 4" 2", 3", 4" 2", 3", 4" |
| 98359 Stops | 98359 | PES6H, PES6M PES8H, PES8M | SDR 15.5 SDR 17 (for 5 sizes) | 4" 2", 3", 4", 6", 8" |
[1]
Prochainement
